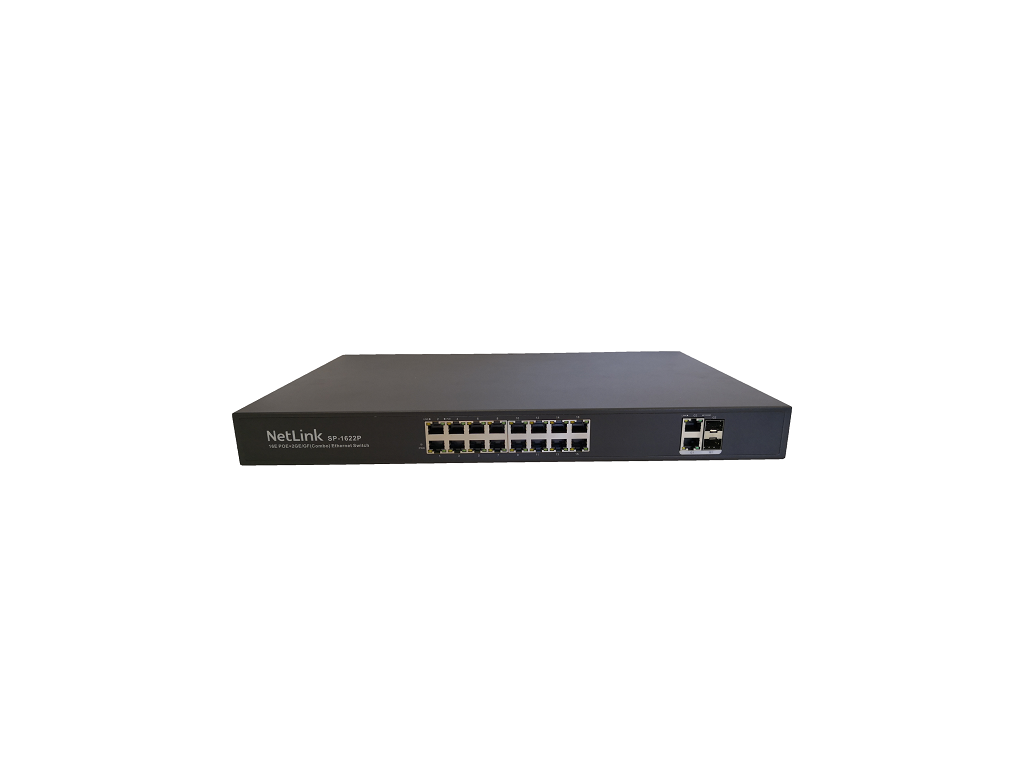

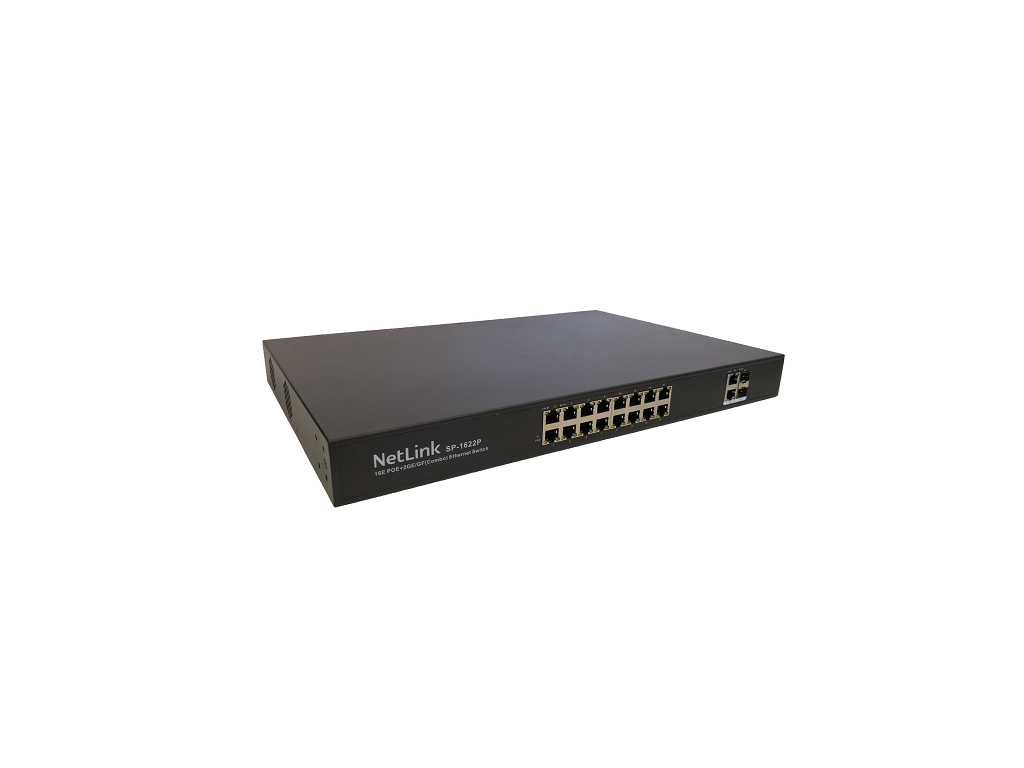

SP-1622P

18-port Gigabit Uplink PoE Fiber Switch

The sp-1622p is an unmanaged PoE fiber switch. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports and 2*1000M uplink TP/SFP combo ports. Port 1-16 can support IEEE802.3af/at standard PoE power supply, and single-port PoE power reaches 30W. The maximum PoE output power is 250W. As a PoE power supply device. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.

Key Features



  • 10/100Mbps access, gigabit (TP/SFP) combo port uplink
    • All series supports “10/100M RJ45 port and gigabit TP/SFP combo port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
    • Support non-blocking wire-speed forwarding.
    • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



  • Smart PoE power supply function
    • 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
    • IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
    • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.



  • Stable and reliable
    • Low power consumption, galvanized steel casing.
    • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
    • CCC, CE, FCC, RoHS.
    • The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
    • Plug and play, no configuration, simple and convenient.
    • Support desktop and 1U/19-inch cabinet installation.
    • Unmanaged model, plug and play, no configuration, easy to use.
