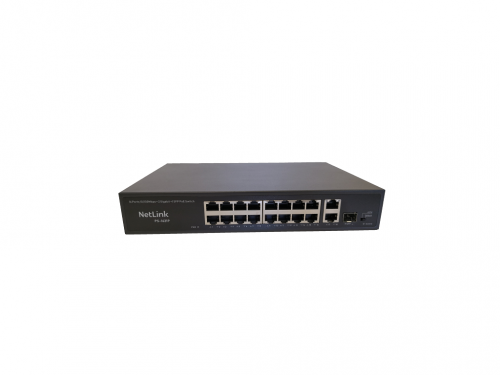

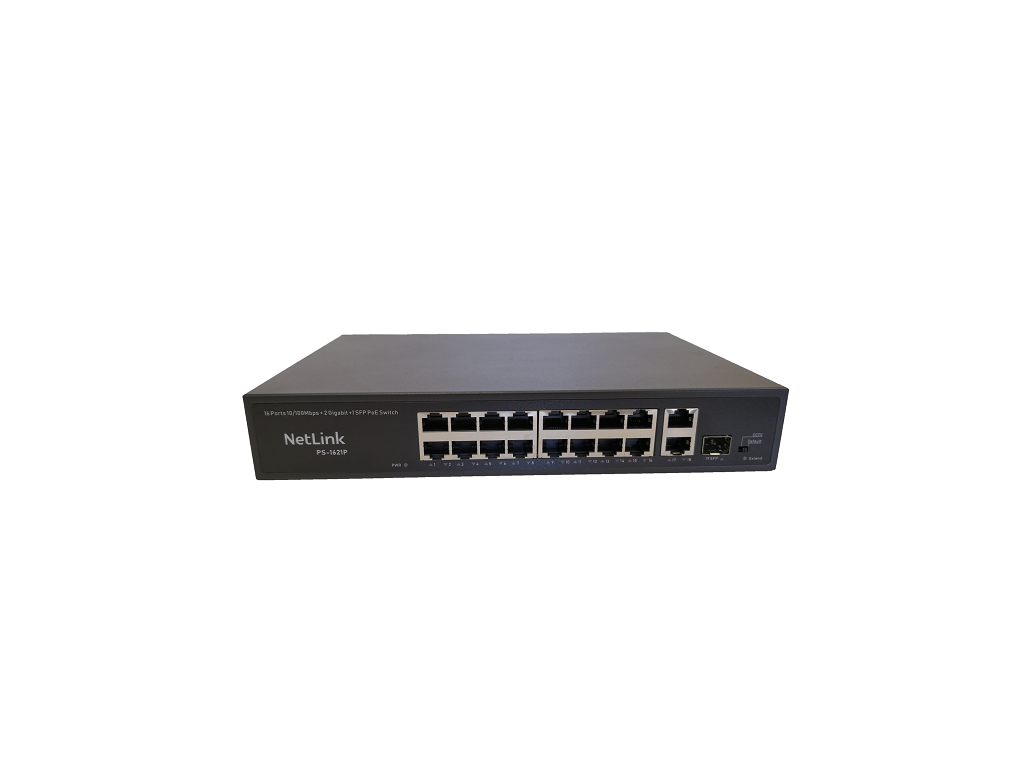

PS-1621P

16-Port 10/100Mbps PoE Switch with 2 1000M Uplink and 1 SFP

Key Features:

  • Ports: Provide 16*10/100Mbps PoE ports and 2 *1000Mbps Uplink and 1*1000Mbps SFP port
  • PoE Standard:3af/at Power over Ethernet (PoE) Compliant
  • Total Power: Total power budget of 200W and 30W for all single PoE ports
  • Self-adaption: RJ45 port supports 10/100Mbps Auto MDI/MDIX
  • Extend Mode: Extend PoE up to 250m on one single cable
  • Wide Application: Designed for WIFI AP and IP Security camera. VoIP etc.
  • Surge protection: Protect the device from lighting surges and other electrical hazards
  • Considerate Design: Exquisite compact size with fanless design
  • Easy to use: Plug and play, no configuration required

Versatile PoE Port

Features 16* 10/100Mbps PoE ports which support IEEE802.3af/at standard and 2 * 1000Mbps Uplink and 1 SFP ports. the PoE switch provides a Maximum power budget of 200W and 30W for single PoE ports selectively, allowing users to have several different Networking products configured



Flexible Extend Mode

With the extended mode, the PoE Switch Series is able to offer more flexible choices for long-range transmission, extending the distance up to 250m, which is greatly helpful to bring a better user experience.

Trust, verify, protect icon - Download on Iconfinder

Surge Protection Design

Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.



Gigabit SFP Uplink Port

With an SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra-high-speed data transferring, Beside the SFP can transmit the data with Max 100Km distance with a more economical solution
