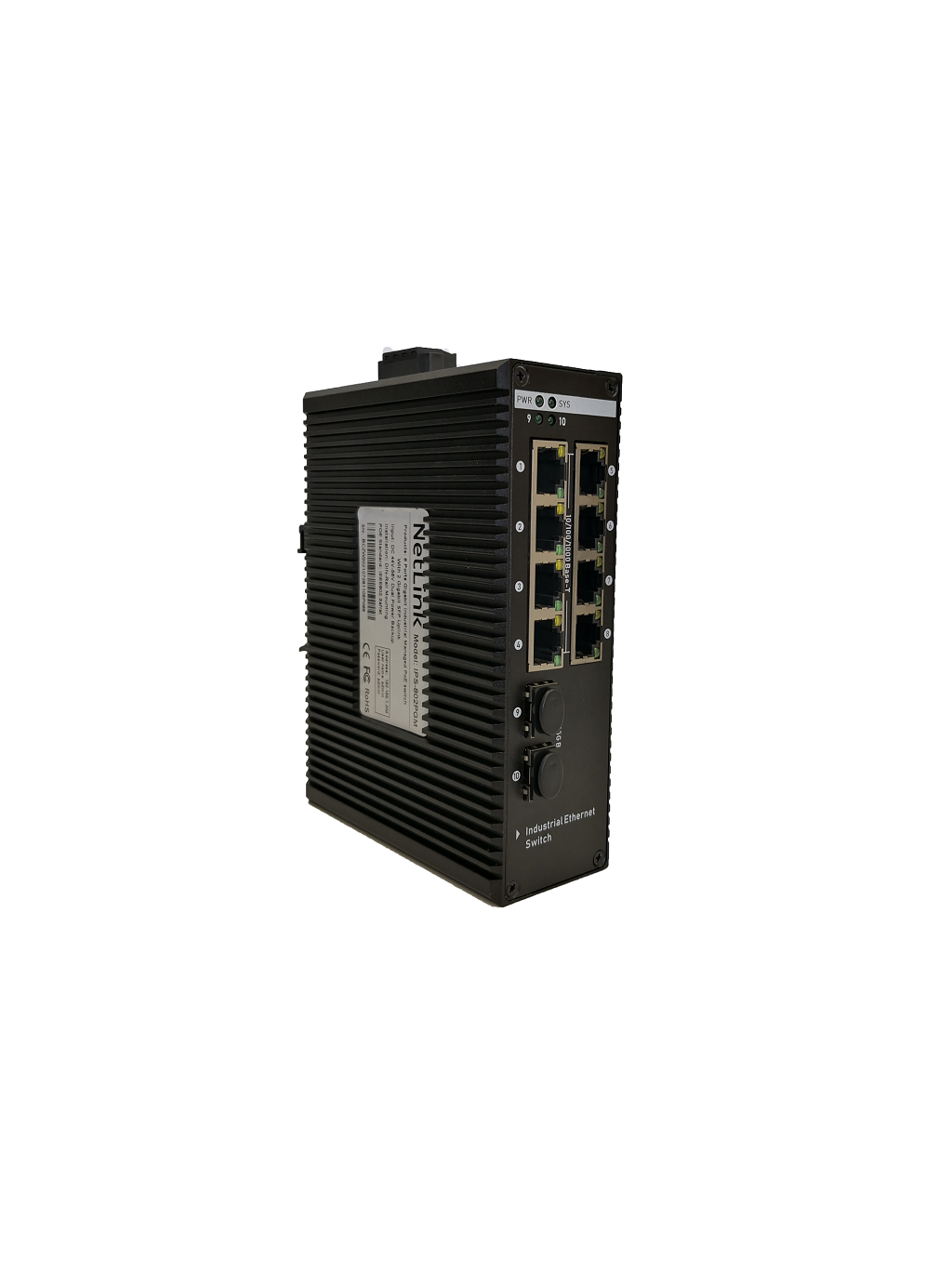

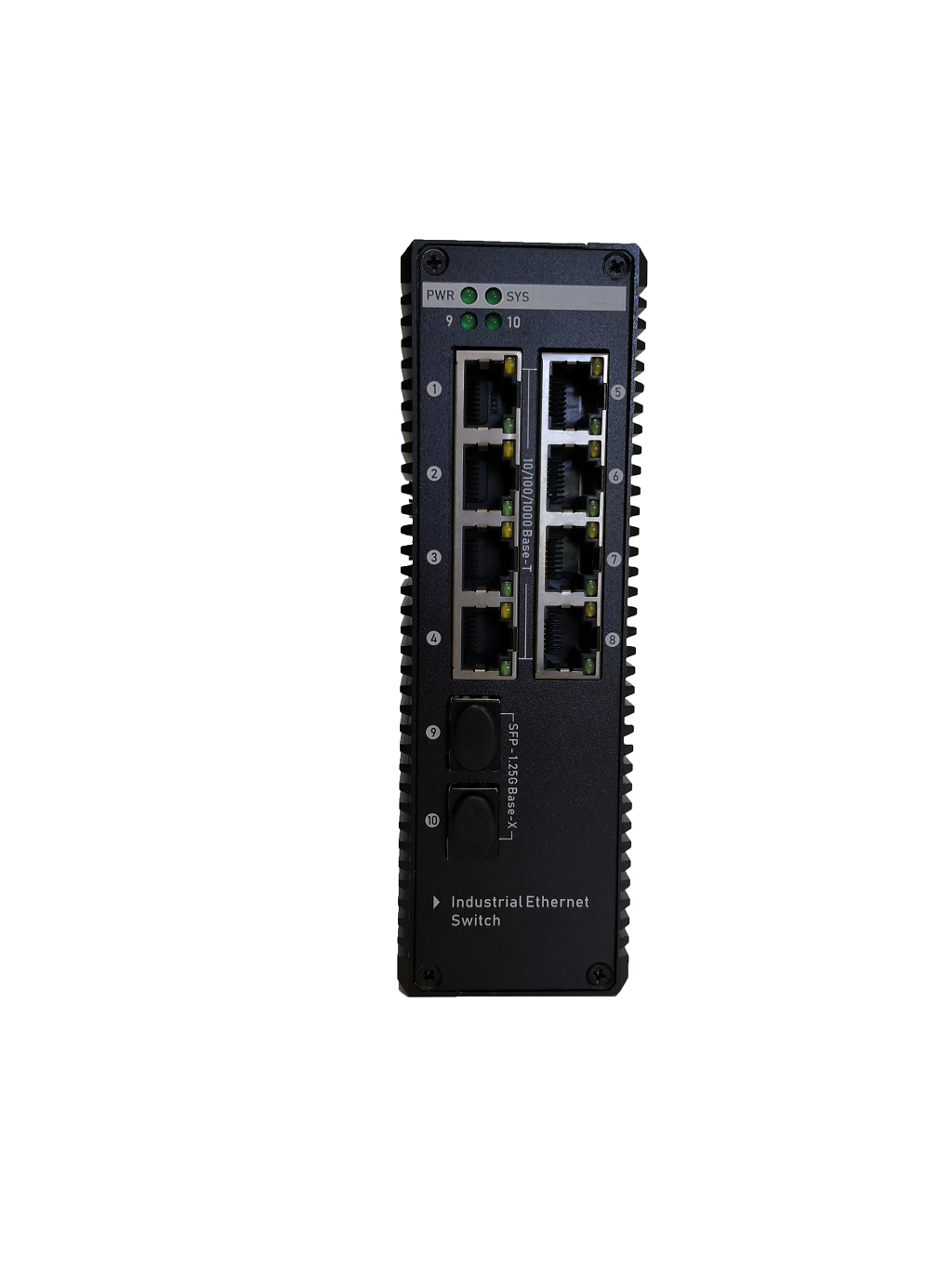

IPs-802PGM

8-Port 10/100/1000Mbps Industrial Managed PoE Switch with 2 SFP Uplink

Key Features:

  • Ports: Provide 8*10/100/1000Mbps PoE ports with 2 1000Mbps SFP
  • PoE Standard:3af/at Power over Ethernet (PoE) Compliant
  • Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
  • Industrial Installation: Din-Rail mounting installation
  • Wide Application: Designed for Railway, traffic, etc. some Industrial environment
  • Surge protection: Protect the device from lighting surges and other electrical hazards
  • Managed: Support remote web-managed, LAN and storm control and IPV6 management, etc.
  • Working Temperature: -40 to 85 degrees operating temperature
  • Considerate Design: IP40 Industrial design with dual power input
  • Easy to use: Plug and play, no configuration required

Environmentally Hardened Design

With the IP40 metal industrial case which provides a high level of immunity against electromagnetic interference and heavy electrical surges, being able to operate under the temperature range from -40 to 85 degrees C, the IPS-802PGM can be placed in almost any difficult environment.

Cost-effective IPv6 Managed Gigabit PoE Switch Solution

With layer 2 managed Gigabit PoE Switch, it provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine and supports high-speed transmission of surveillance images and videos.

Trust, verify, protect icon - Download on Iconfinder

Surge Protection Design

provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.







Gigabit SFP Uplink Port

With two SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra-high speed data transferring, Beside the SFP can transmit the date with Max 100Km distance with more economical solution
