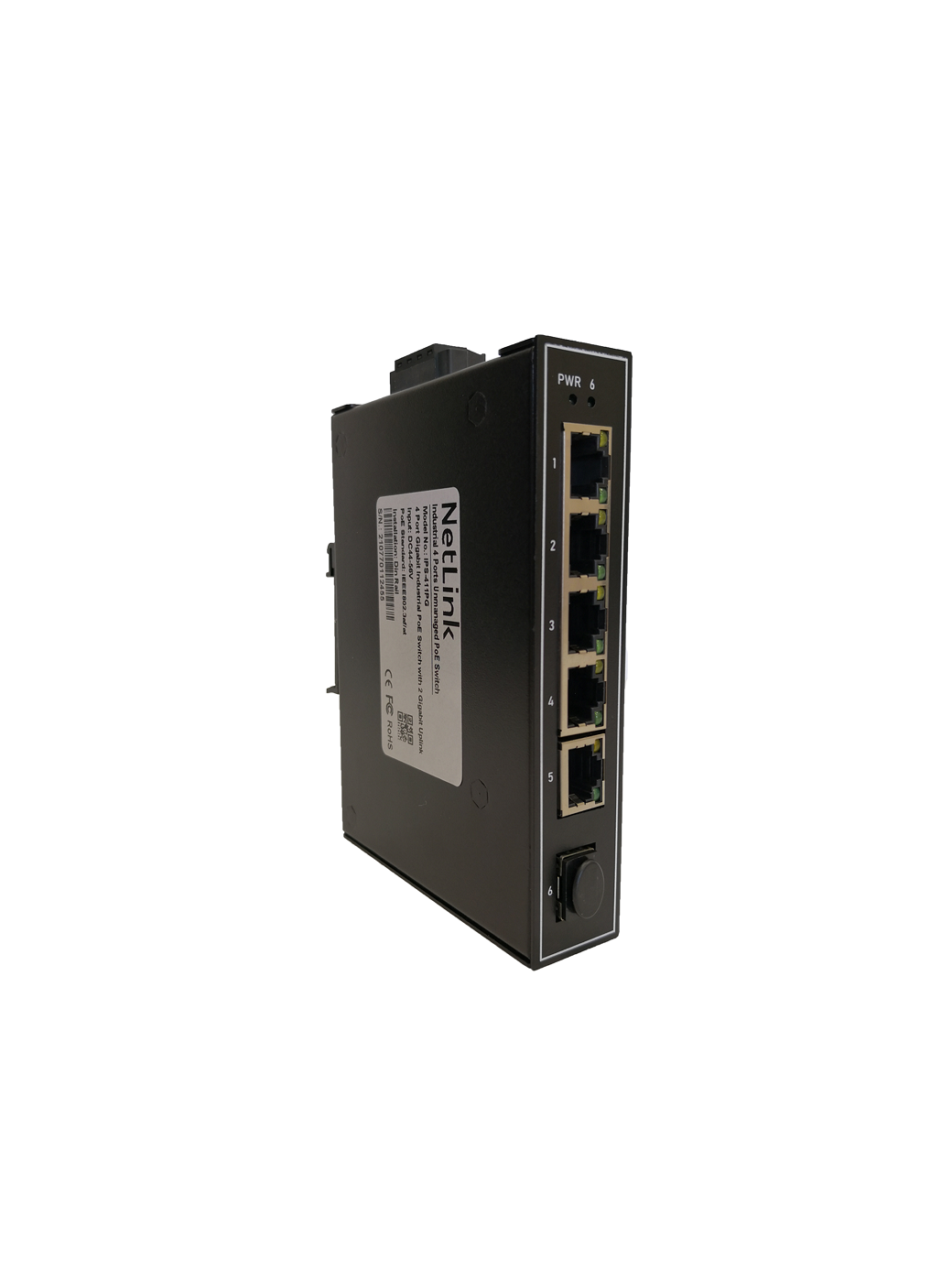

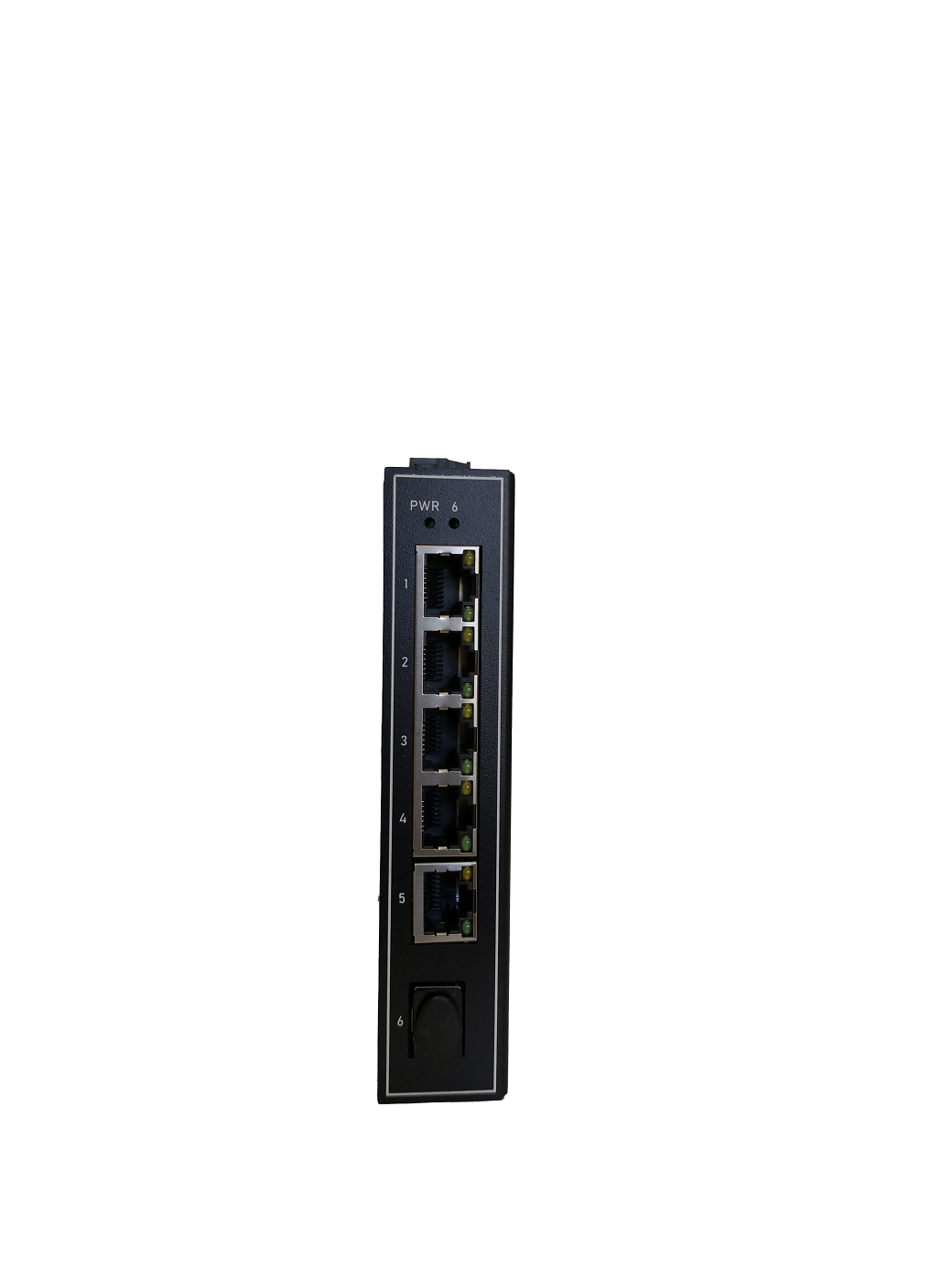

IPS-411PG

4-Port 10/100/1000Mbps Industrial PoE Switch With 2 Uplink

Key Features:

  • Ports: Provide 4*10/100/1000Mbps PoE ports with 2*1000Mbps Ethernet and 1000Mbps SFP
  • PoE Standard:3af/at Power over Ethernet (PoE) Compliant
  • Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
  • Industrial Installation: Din Rail mounting installation
  • Wide Application: Designed for Railway, traffic etc. some Industrial environment
  • Surge protection: Protect the device from lighting surges and others electrical hazards
  • Working Temperature: -30 to 65 degrees operating temperature
  • Considerate Design: IP30 Industrial enclosure
  • Easy to use: Plug and play, no configuration required

Environmentally Hardened Design

With the IP30 metal industrial case which provides a high level of immunity against electromagnetic interference and heavy electrical surges, being able to operate under the temperature range from -30 to 65 degrees C, the IPs-411PG can be placed in almost any difficult environment.

Dual Power input for High Availability Network

Featuring a strong dual power input system with wide-ranging voltages (12V~56V DC) incorporated into customer’s automation network to enhance system reliability and uptime which make the installation more flexible and convenient.

Trust, verify, protect icon - Download on Iconfinder

Surge Protection Design

provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
